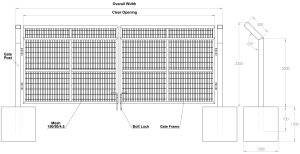

Double-Leaf Vehicle Access Gates with Beam

Vehicle gates are double-leaf gates designed for the passage of vehicles and heavy machinery.
The gate opening ranges from 2 meters up to 9 meters.
A 2-meter-high gate with an extension is installed in locations where a fence with an extension is installed.
The gate is installed within concrete foundations measuring 100 x 100 x 100 cm.

Double-Leaf Vehicle Access Gates with Beam

Vehicle gates are double-leaf gates designed for the passage of vehicles and heavy machinery.
The gate opening ranges from 2 meters up to 9 meters.
A 2-meter-high gate with an extension is installed in locations where a fence with an extension is installed.
The gate is installed within concrete foundations measuring 100 x 100 x 100 cm.

Catalog No.	Total Height	Total Width	Clear Opening	Beam Length	Posts & Frame Profile	Gate Frame Profile	Mesh
BSHAAR2-2.5	2350	2000	1800	500	80/80/2.65	60/60/2.00	150/50/4.5
BSHAAR3-2.5	2350	3000	2800	500	100/100/3.25	60/60/2.00	150/50/4.5
BSHAAR4-2.5	2350	4000	3800	500	100/100/3.25	60/60/2.00	150/50/4.5
BSHAAR5-2.5	2350	5000	4800	500	120/120/4.00	60/60/2.00	150/50/4.5
BSHAAR6-2.5	2350	6000	5800	500	150/150/4.00	60/60/2.00	150/50/4.5
BSHAAR7-2.5	2350	7000	6800	500	150/150/5.00	60/60/2.00	150/50/4.5
BSHAAR8-2.5	2350	8000	7800	500	150/150/5.00	60/60/2.00	150/50/4.5
BSHAAR9-2.5	2350	9000	8800	500	200/200/6.00	60/60/3.00	150/50/4.5
